Lamilux Glass Skylight FE

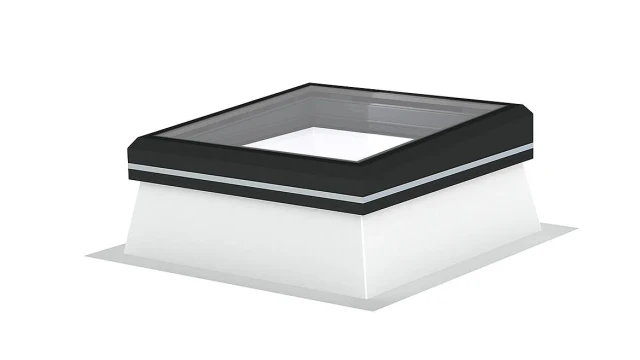

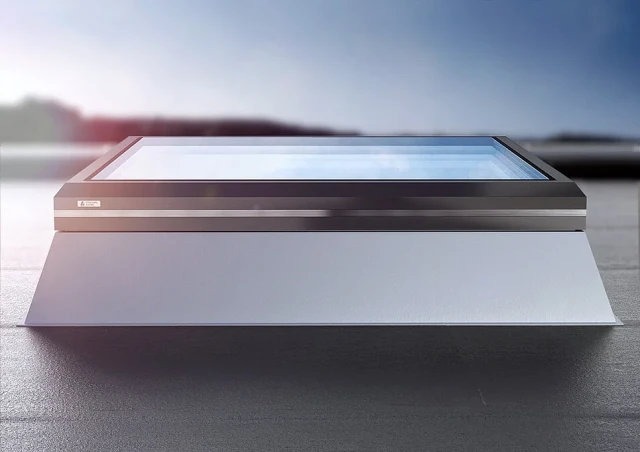

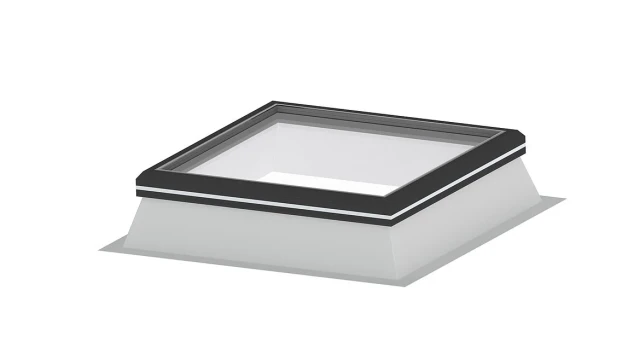

LAMILUX Glass Skylight FE 0°

With its clean lines, flush structural glazing and customisable aluminium frame in a wide range of RAL colours, the LAMILUX Glass Skylight FE 0° blends seamlessly into modern flat roof designs and brings natural daylight into the building with timeless elegance. Awarded for its minimalist aesthetics, it is delivered fully pre-assembled and BIM-ready, making planning and installation quick and straightforward. A wide choice of sizes, double or triple glazing, solar-control options and different drive systems ensures maximum flexibility for a variety of architectural and functional requirements. Its thermal-bridge-free construction, optimised sound insulation and tested resistance to wind and driving rain provide lasting comfort and reliable performance. Permanent fall-through protection and optional ventilation, sun protection and smoke extraction combine safety and versatility with elegant design.

Safety

• Fall-proof according to DIN EN 18008-6
• Flat Roof Window with general building inspection approval in "Structural Glazing" construction method - certified by the German Institute for Construction Technology in Berlin (DIBt)
• Smoke exhaust opening
• Resistance against wind load in line with DIN EN 12211 = C5
• Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5

Quality

• Overall structure free of thermal bridges
• Water tightness under driving rain to DIN EN 1027 = E (1950)
• Optimised soundproofing and minimised rain noise
• Long service life
• Permeability to air in line with DIN EN 1026 = Class 4
• Life-cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the Glass Skylight FE in accordance to ISO EN 15804

Design

• Award-winning:
  German Design Award, reddot design award, Plus X Award
• Uniform appearance
• Aesthetic, classical and elegant design language
• Avoidance of dirt on the glass surface
• Wide variety of colours based on RAL system (surrounding profile)

Use

• Our Flat Roof Window FE is BIM-Ready - Download at bimobject.com
• Fully pre-assembled
• Simple installation
• Efficient maintenance
• Versatile adapter frame

Variety

• Large range of sizes
• Customisation to the overall concept
• Various glazing types
• Various drive options

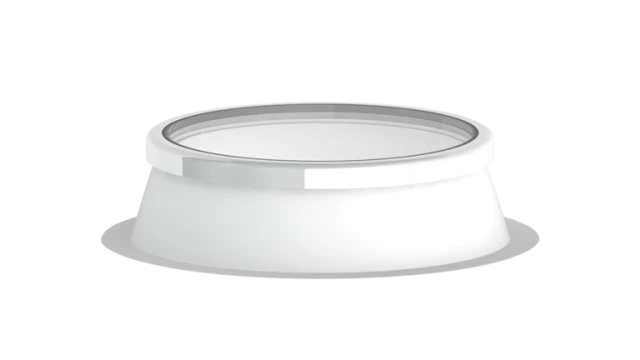

LAMILUX Glass Skylight F100 Circular

With its pure circular geometry, the LAMILUX Glass Skylight F100 Circular becomes an architectural highlight on any flat roof—setting bold design accents while delivering exceptional daylight. Its thermal-bridge-free construction, thermally insulated GRP upstand and balloon double-sealing system support excellent energy efficiency, airtightness and year-round comfort. Safety glazing ensures lasting clear views, while the smooth transition between the glass and frame allows rainwater to drain away freely. An optional upstand with a 5° inclination further improves water drainage and supports a self-cleaning effect. Concealed drives enable natural ventilation without disrupting the clean interior appearance. Delivered fully pre-assembled and BIM-ready, the skylight allows for efficient planning and installation. Permanent fall-through protection, tested weather resistance and preventive fire protection complete this elegant and durable daylight solution.

Stability

• Tested watertightness, even in high wind speeds (driving rain impermeability, in accordance with EN 12208, Class E 1950)
• Very high load-bearing capacity due to optimised profiles
• Approved fall-through protection
• Excellent stability under wind and snow loads
• UV-resistant edge bond

Energy efficiency

• Available in double or triple insulating glazing with TSG on the outside and LSG on the inside (LSG can be fitted with a clear or matt-light film) with Ug-values of 1.1 to 0.8 W/m²K
• Structure completely free of thermal bridges with a Uw-value between 1.1 and 0.76 W/m²K, depending on the glazing (as per EN ISO 10077-1)
• Thermally insulated, jointless GRP upstand, with a height of 70, 50 or 30cm with U-values ≥ 0.68 W/m²K
• Outstanding air-tightness due to the new balloon double sealing system: Performance class 4 – tested in accordance with EN 12207
• Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the LAMILUX Glass Skylight F100 Circular in accordance with DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and DIN EN ISO 14025

Comfort

• NEW: Chain drives which are invisibly integrated into the upstand, available – Awarded the German Design Award 2020 in the category Winner
• NEW: 5° inclined upstands available for an ideal self-cleaning effect
• Flat drainage surface: The newly designed frame profile provides a smooth transition between the glazing and the border frame, creating an unobstructed drain for rainwater
• Permanently clear view and generous daylight through scratch-resistant glazing
• Our Glass Skylight F100 Circular is BIM-ready – Download at bimobject.com
• Generous daylight incidence and lasting clear views due to scratchproof glazing
• White, silk-matt appearance inside – no additional drywall construction required

Safety

• The first building approved glass skylight in “Structural Glazing” design – certified by the German Institute for Structural Engineering (Deutsche Institut für Bautechnik, DIBt) in Berlin
• Condensation resistant between glass panels due to thermally decoupled edge bond, unlike plastic domes
• Preventive fire protection: Compliance with DIN 18234 – to prevent fire spread on the roof without additional measures such as gravel fill
• Can be used as an SHEV system in staircases
• Delivery of Glass Skylight F100 completely pre-assembled on the upstand
