Reinventing traditional lightwells
Lucernario Ventilation – light shaft cover can be installed during the construction or renovation of terraces and sidewalks with lightwells. Also ideal for applications in the garden.
The finishes
Lucernario is made of semi-gloss steel for a modern but not too flashy appearance. The shatterproof glass plays a major role in terms of security, it provides natural light and allows safe transit thanks to the non-slip pattern R11.
How it works
Lucernario collects rainwater from its drainage channel and permits ventilating the underground environment through the air intakes. The air intakes, which are always open, are protected by anti-insect and dirt meshes. Simply lift the grille to clean the drainage channel.
Maintenance
Keep in mind that the vents are always open; however, they are vertical, so they are unlikely to get clogged (although periodic cleaning is required). The sealant's water resistance is guaranteed for a minimum of 10 years. The glass can be cleaned with neutral and non-aggressive products.
Heated cellars / light-well
If the cellar is heated and there is no window between the light-well and the cellar, it is better to opt for the Lucernario The walk-on rooflight / window
Go to website page The Walk-on rooflight
The glazing of the Lucernario
The glazing of the Lucernario has a pixel structure as standard so that the top layer has an anti-slip function; however, it is also possible to opt for a matrix structure in the glass.
Clear Glass
The Lucernario can be supplied with clear glass. However, we must make you aware of the following disadvantages with clear glass:
- Lucernario may be slippery when wet;
- Provides no privacy in the lightwell / basement;
- Dirt on the glass will be more obvious.
Available in various RAL colours
In addition to the standard colour of ssemi-gloss bare steel, the systems are also available in various RAL colours.
If a colour finish is required the Lucernario will be supplied in steel (as opposed to stainless steel) and powder-coated in your chosen colour.
Customisation
Grid Options
1x Grid
A customisation option if the skylight is smaller in size and a maximum amount of daylight is preferable to ventilation.
3x Grid
The standard version is equipped with three ventilation grilles.
4x Grid
A customisation option if the skylight is of a reasonable size and maximum ventilation is desired.
Bespoke Dimensions
The Lucernario Ventilation – light shaft finish can be supplied in specific dimensions. The standard system, of which 3 sides are fitted with grids, starts from 450 mm x 600 mm. Note that the daylight opening is very small.
For the systems with 4 grids, the dimensions are always on request/customisation, the smallest size being 560 mm x 600 mm.
Please note: The stainless steel version can be made to measure up to a maximum size of 950 x 2200mm. The colour coded Lucernario (powder-coated steel) can be supplied in almost any size (by request).
Customisation
Questions? Better Call Mark
Lorem ipsum dolor sit amet, consectetur adipiscing elit.

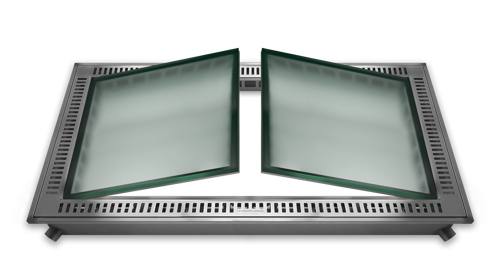

Ventilation – light well finish openable
Openable outside
Lucernario with the option to open and close from the outside is suitable for shower tray, underground storage, access for installations, access to basement or cellar.
Openable inside
Lucernario with the option to open and close from the inside is suitable for sealing emergency exits. For example for a parking garage, fully automatic car storage (VAB), metro, bicycle garage or cellar (basement). This type of opening Lucernario is also used as a seal for underground storage or as access for installations. Also, see the standard systems that can be opened from the outside.
Please note that this option has an internal locking mechanism and can only be opened from the inside.
Go to webshop for more information
Accessories Adapter
An adapter is available to supplement the Lucernario standard ventilation solution for cellars and basements. This adapter ensures that new or existing ventilation connections are now possible for services within the basement such as ventilation systems, smoke extraction systems etc.
There are 3 different adapters available with diameters of 110mm, 150mm and 180mm.
As a result, ventilation pipes that protrude above the cellar are a thing of the past and the sleek design around the light-well is preserved!
Accessories Ventilation
Various ventilation accessories are available such as exhaust fans (Out type). Exhaust fans can be used in the case of poor ventilation or stale air in the room. There is also the option of an in/out fan. IN-OUT fans can also blow fresh air in from the outside.
Go to webshop for more information
Walkable and Drive-Over Floor Skylights
The standard Lucernario version is walkable, with an optional drive-over feature available.
Our Inspiration Book
Our carefully crafted Inspiration Book is designed to spark new ideas, empower your projects, and take your vision to the next level.
For more detailed information from our product, including CAD drawings and installation instructions, please visit our webshop at the specific product.
