LAMILUX Modular Glass Skylight MS78

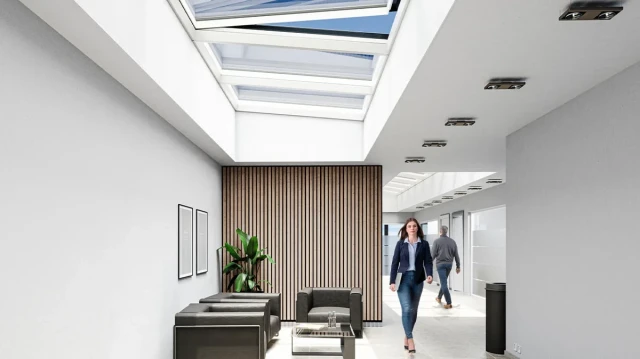

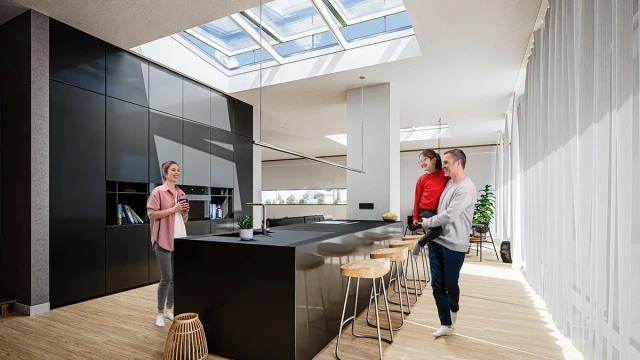

The LAMILUX Modular Glass Skylight MS78 combines the advantages of prefabricated skylights with the flexibility of a large-area glass roof system. Module sizes of up to 130 Ă 300 cm create generous, glazed surfaces and bring abundant natural daylight into the building.
Fixed elements and ventilation vents share a uniform appearance, while concealed drives preserve the clean interior design. The number and position of the opening vents can be freely configuredâeven directly next to one anotherâcreating maximum ventilation areas and allowing the fresh-air supply to be tailored to the buildingâs needs.
Installed at inclinations between 5° and 30°, the level transition between the glazing and frame supports efficient water drainage and helps prevent dirty edges. Designed for exceptionally fast and straightforward installation, the highly prefabricated modules can be mounted entirely from the roof side and connected directly to load-bearing surfaces made of concrete, steel or wood. This significantly speeds up the workflow and simplifies the overall construction process.

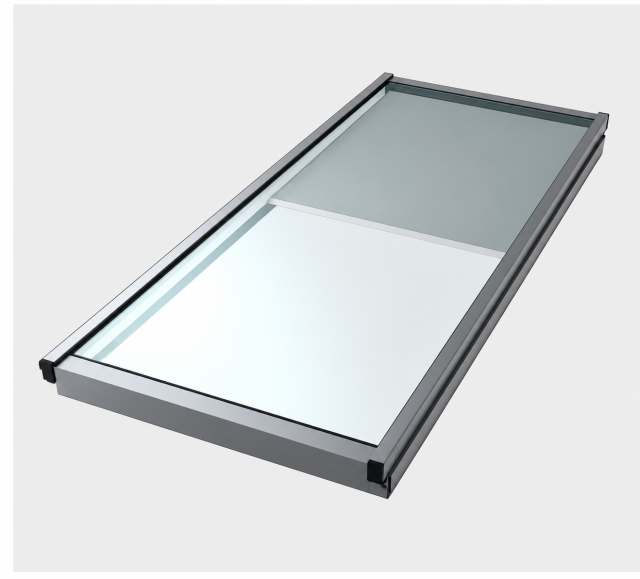

The highly prefabricated modules can be installed entirely from the roof side and connected directly to load-bearing surfaces made of concrete, steel or wood, simplifying the construction process. Double or triple glazing and optional sun and glare protection create a comfortable indoor environment and make the system a versatile solution for individual architectural concepts.

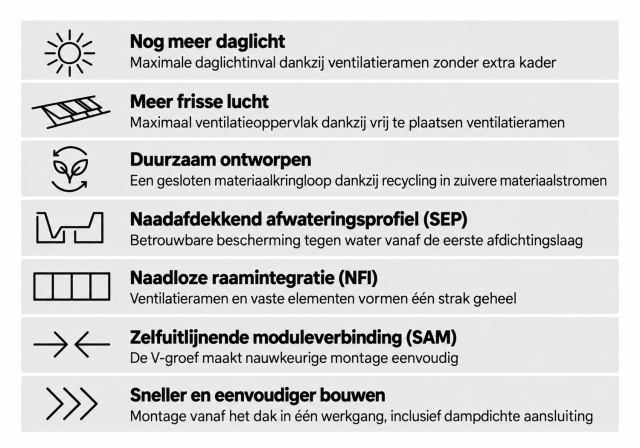

Design
- Uniform appearance of vents and fixed elements through native vent integration (NFI)
- Reduced design in the interior area due to vents with invisible, integrated drives
- Sustainable product material cycle through single-origin recycling
Daylight incidence & fresh air supply

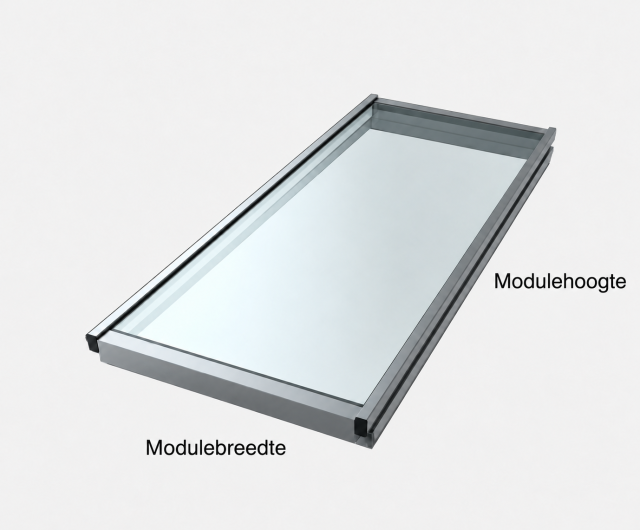

- High proportion of glass due to module sizes up to 1.30m x 3.00m
- Full light area due to vents without tensioning frame
- Maximum ventilation area due to unrestricted vent arrangement
Safety
- Maximum safety from the first sealing level onwards thanks to the butt-covering drainage profile (SEP)
- Best quality standards due to high degree of prefabrication
- The overall system offers thermal insulation values significantly above the legal requirements, for lower costs and active energy savings
- Safety thanks to the long service life of the entire system
Comfort

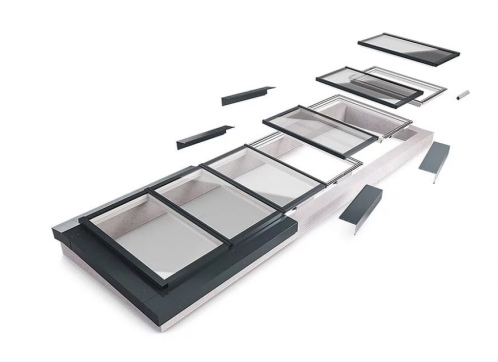

- Precise installation thanks to V-groove and self-aligning module connection (SAM)
- Optimised construction process thanks to complete installation from the roof side in one stage, including vapour-tight connection
- Simple and secure roof integration thanks to system-specific connection technology
- Direct installation on load-bearing surfaces made of concrete, steel or wood without additional mounting and levelling profiles
